Construction Seats Australia
CATERPILLAR - KOMATSU - KOBELCO - HITACHI
The construction industry is huge, and those who work in it and use heavy equipment and machinery need to be aware that they must use the correct seating at all times. As a construction worker, you can often spend hours jarring and jolting when driving on uneven terrain. Usually, mechanical suspension systems on these large and heavy types of equipment do not offer a suitable enough solution to prevent this from happening, which could eventually result in back injuries and pain.
Here at KAB Performance Seating, we offer a full range of products to enable construction operators to use their equipment with ease and comfort. We provide state-of-the-art seating design and solutions for cranes, bulldozers, backhoes, excavators, haul trucks, scrapers, skidders, wheel loaders, and feller bunchers. Using the latest ergonomic features such as air and mechanical suspension and comfortable cushioning, plus a whole host of adjustments specified for your personal needs, we can support operators in this physically demanding industry.
Call us for a free quote on all your construction seat needs at (03) 9469 4082.
Product Range

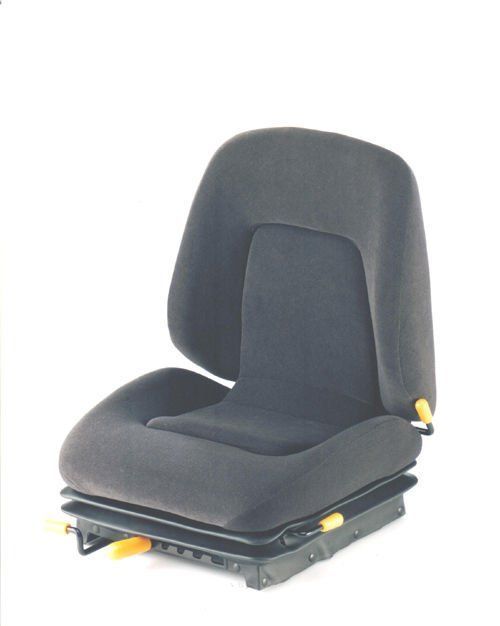

KAB 211
Adjustable mechanical suspension with a 50-120kg weight range. Features include 50mm vertical stroke, 210mm fore/aft adjustment, 10-degree backrest angle in 3 increments, 2-position seat tilt, and a suspension cover for enhanced comfort and customisation.

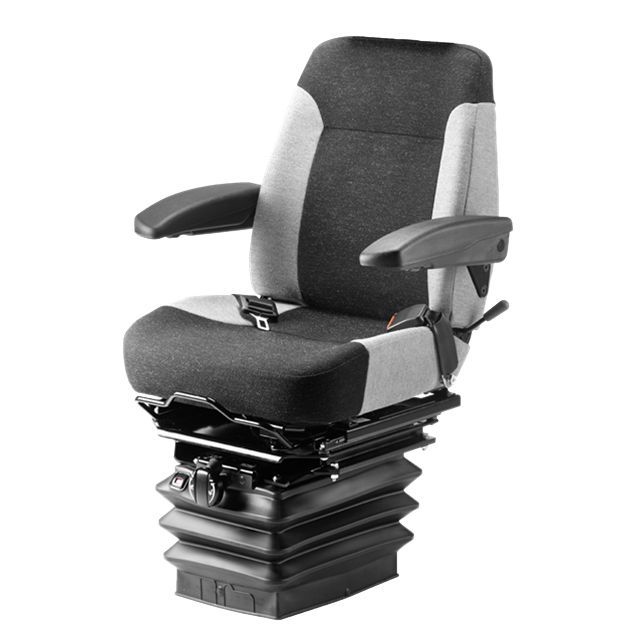

KAB 111
The KAB 111 Mid Back seat has been designed using our durable 100 series mechanical suspension suitable for small to medium sized vehicles.

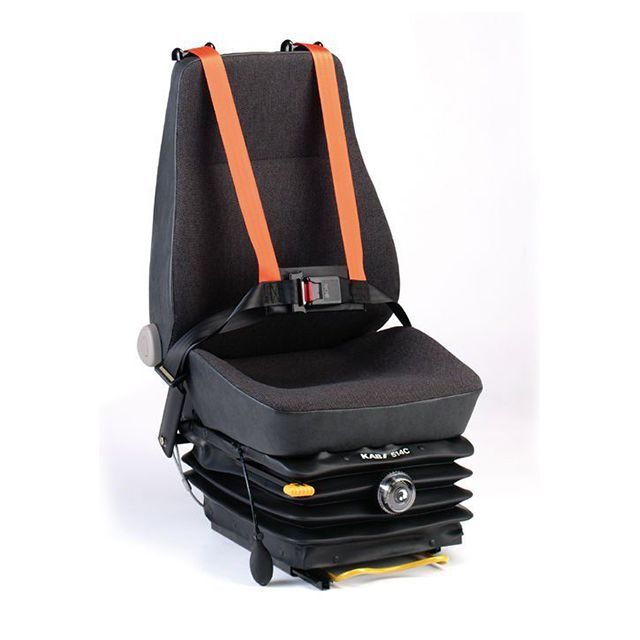

KAB 514C
Mechanical suspension seating tailored for construction and marine sectors. Features include a 2-spring suspension system, 100mm vertical stroke, 60mm height and tilt adjustment, driver weight customisation (50-120kg), suspension cover, and air lumbar support for enhanced comfort.
KAB 115
The 115 seat is a mechanical suspension seat suitable for a wide range of small to medium-sized vehicle applications. This seat is also fitted with a 2-point seat belt.
KAB XH2/P2
It features a 90mm vertical suspension stroke, manual weight adjustment (50-120kg), 70mm height adjustment, and one-piece foam and PVC trim. Includes a rigid steel pan, ventilation and drainage grooves, base drainage holes, and EEC 78/764 vibration performance compliance.
KAB 514
The 514 seat is ideal for fitment into large industrial vehicle
applications. With its mechanical suspension and righthanded
controls, users can manually adjust the seat to their
requirements.
The seat is suitable for large construction and industrial
vehicle applications.

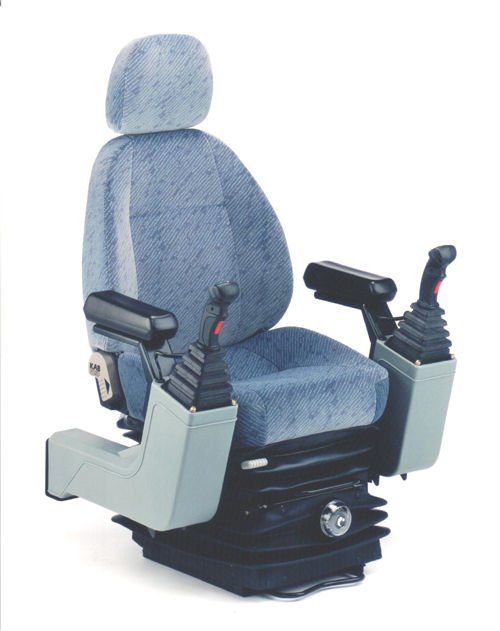

KAB 525P
Features a 100mm vertical suspension stroke, manual weight adjustment for drivers ranging from 50 to 120kg (525 variant: 50 to 150kg), 60mm seat height and tilt adjustment, backrest angle adjustment, 200mm fore and aft adjustment, suspension cover, and ISO 7096 vibration performance.

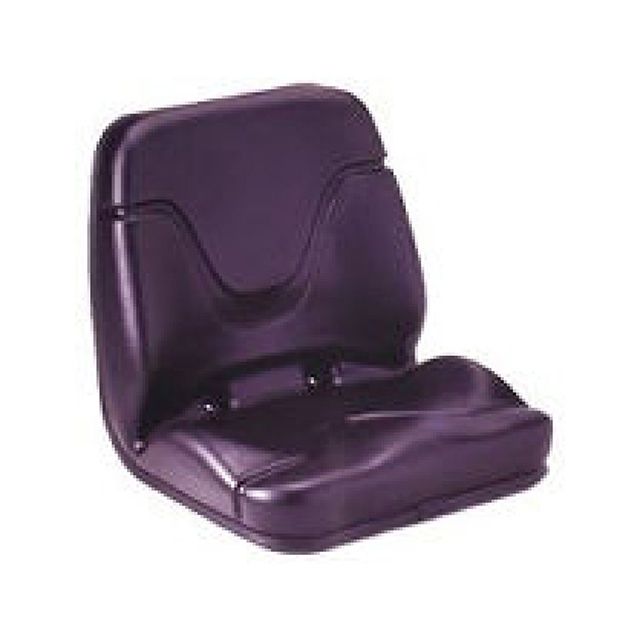

KAB P4
The KAB P4 is a space-saving and cost-effective one-piece upper. It can be used for static applications in conjunction with a KAB XL2, XH2, 800 or 21 suspension module. Side rails can be fitted if required. The KAB P4 has a medium-height backrest, which provides improved comfort and more support for the driver's back.
KAB 514C
Mechanical suspension seating designed for construction and marine sectors featuring a 2-spring system. Offers a 100mm vertical suspension stroke and 60mm height and tilt adjustment for optimal comfort and support in demanding environments.

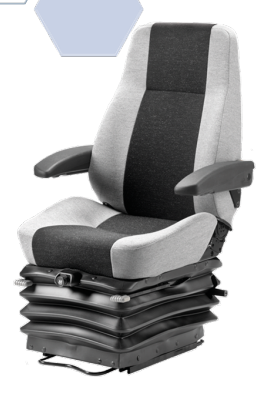

KAB 554
Suitable for large construction machines, the KAB 554 seat
features left hand controls and is suitable for air feed direct
to the vehicle. The seat offers adjustable support for users
of industrial vehicles.

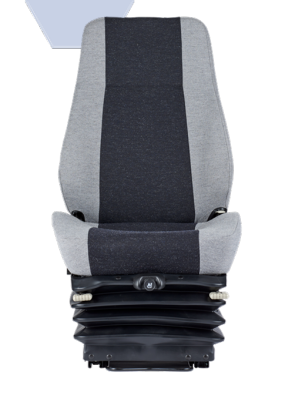

KAB 554 - 24V
Suitable for large construction machines, the KAB 554 seat
features front hand controls and is compatible with vehicles
with 24V supply. The seat offers adjustable support for
users of industrial vehicles.

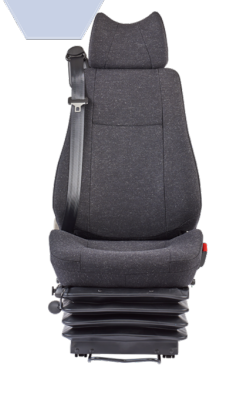

KAB 554B
Suitable for large construction machines, the KAB 554 seat
features right hand controls and is suitable for air feed
direct to the vehicle. The seat offers adjustable support for
users of industrial vehicles. is seat also features a 3 point
seat belt for added operator security.

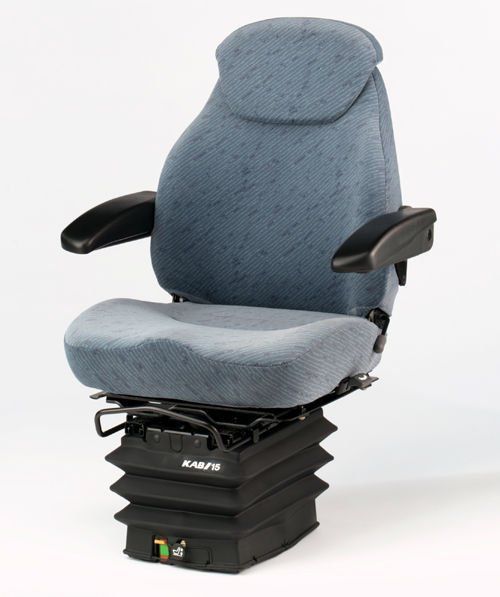

KAB 15/E6
An air suspension seat is upholstered in Breeze velour or plain fabric, with a 70mm height adjustment and a 12V compressor for customised support. Features include lumbar support, comfort armrests, back extension, and a 20-degree swivel for enhanced comfort and versatility.

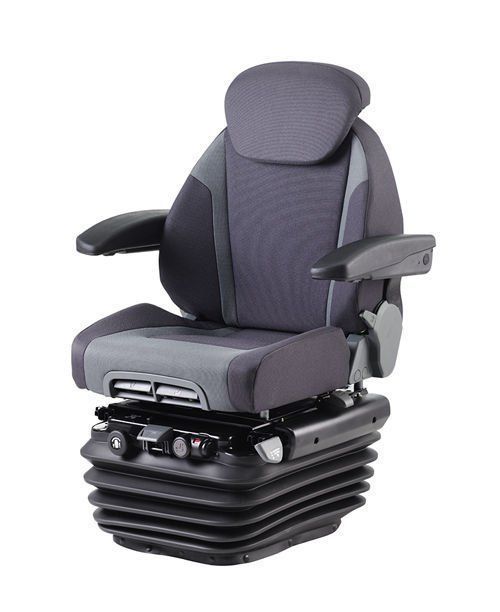

KAB 85/E6
The 85/E6 air suspension seat is favoured in agriculture and construction. Features Air 85 low-frequency suspension, Low back E6 upper, 175mm suspension stroke, 75mm integral height adjustment, 50-120kg weight range, 12v integral compressor, and one-touch riser for convenience.

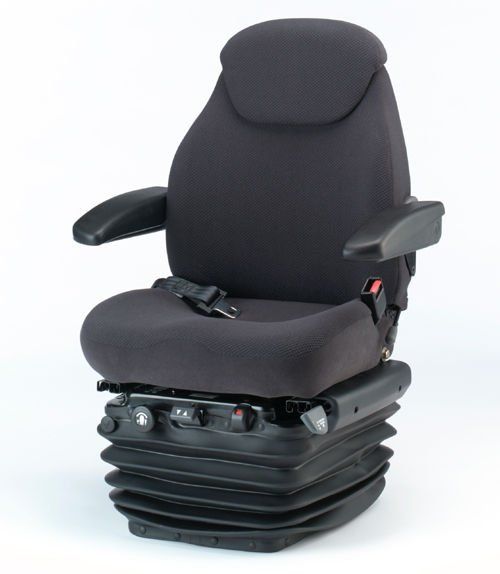

KAB 85/E1
The 85/E1 air seat caters to agriculture and construction. Features Air suspension with 12V integral compressor, 175mm vertical stroke, 70mm height adjustment, 75mm integral height adjustment, driver weight adjustment (50-120kg/110-265lbs), ride indicator, suspension cover, 5-position lumbar support, and backrest angle adjustment.

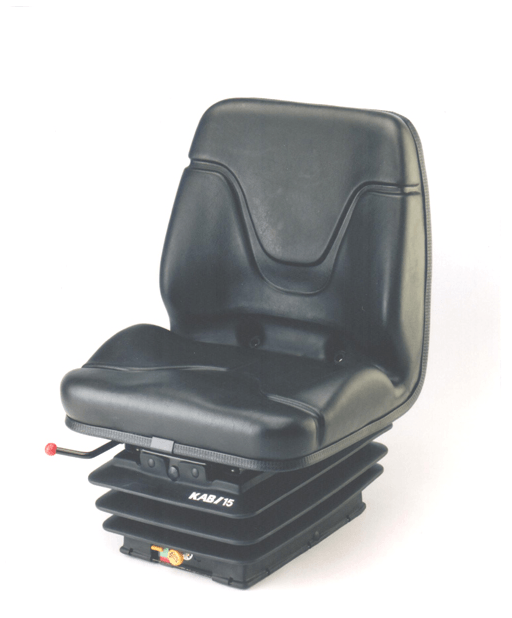

KAB 15/P4
The 15/P4 seat offers comprehensive features for various sectors. It includes an integral air compressor, 80mm vertical suspension stroke, 70mm integral height adjustment, weight adjustment (50-120kg), ride indicator, suspension cover, P4 upper, vibration performance compliance, robust seat belt anchorage, and 150mm fore and aft adjustment.

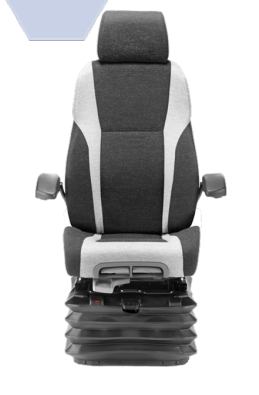

KAB 65/K4
The 65/K4 offers a heavy duty suspension for tough
environments. Suitable for medium and large construction
machinery, its features to improve the overall ride for the
user. The seat features a high back upper, adjustable
damper and fitted 2 point seat belt, offering support for the
vehicle operator.

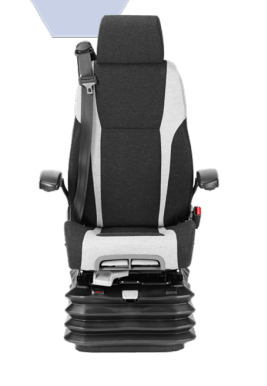

KAB 65/K4B
The 65/K4B offers adjustable damping and superior comfort
features to improve the overall ride for the user, including.
Suitable for a wide range of construction vehicles, the
65/K5B is equipped with a headrest, armrests and 3 point
seat belt.
Sentinel Mechanical
The new Sentinel range is suitable for Material Handling and Small Construction vehicles. The range has been designed with user safety and comfort in mind, with easy-to-use features that maintain user productivity in hard-working environments.

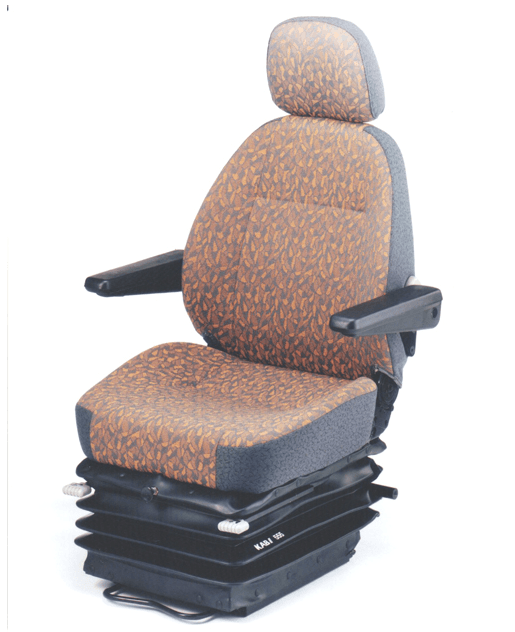

KAB 555
The 555 series offers superior features for diverse needs. With a 125mm vertical suspension stroke, 60mm seat height and tilt adjustment, backrest angle adjustment, and 200mm fore and aft adjustment, it ensures optimal comfort. Additional options include an integral air compressor, self-levelling valve, lumbar support, pivoting armrests, adjustable headrests, cushion heaters, compliant seat belts, and a range of fabric or PVC trims. Optional double dampers are available for heavy vibration applications.

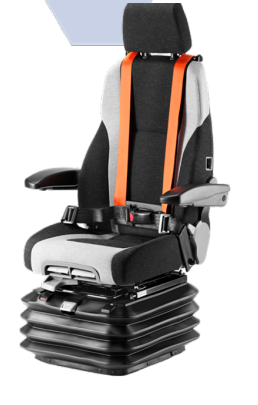

KAB 65/K4C
The 65/K4C offers adjustable damping and superior comfort
features to improve the overall ride for the user. Additional
to damping and fore/aft adjustment, the seat also includes heater and mechanical lumbar. Suitable for a wide range of construction vehicles, the
65/K4C is equipped with a headrest, armrests and 4 point
seat belt.

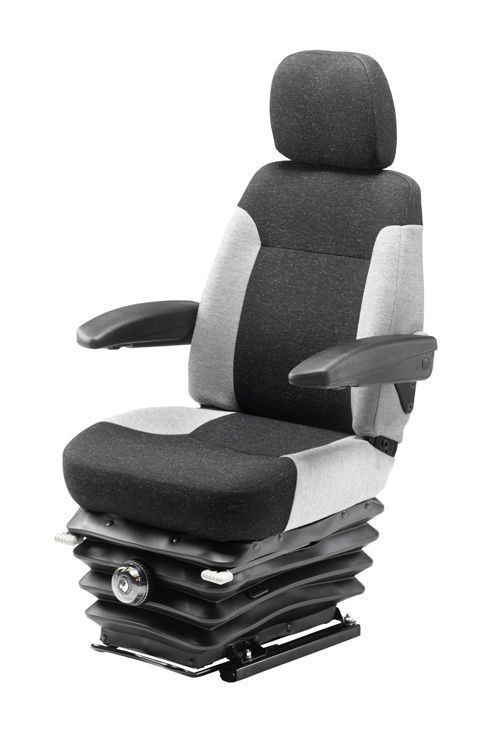

KAB 61/K4
The 61/K4 is a robust mechanical suspension seat from the New 600 series, offering stability and minimal free play for heavy-duty use. Features a low natural frequency mechanical suspension with a 160mm vertical suspension stroke.
KAB 515/525 Cloth
The Heavy Duty suspension on this seat makes the seat well suited for tough construction environments over rugged terrain. The reinforced mechanism helps to protect vehicle users from shocks and injuries.
